• 🛠️ Installation

    Color-coded wires makes installation easy.

    Connect three wires:

    • House2Start yellow wire to house battery
    • House2Start blue wire to starter battery
    • House2Start black wire to chassis ground

    No app, no switches, no extra cords.

  • ⚙️ Operation

    House2Start intelligently charges and maintains the engine starter battery. The temperature-compensated charging is completely automatic, providing worry free year-round charging. Zero risk of over-charging the starter battery. High-efficiency DC-DC circuitry allows charging the starter even from a lower-voltage house battery.

  • ✨ Result

    • Starter Battery stays charged, keeping you on schedule and preventing cancelled trips due to battery issues.
    • Eliminates battery deep discharge, preventing its harmful effects from permanently damaging the battery.
    • Well maintained starter batteries last 5-7 years compared to 1-3 years when deeply discharged.
    • Longer battery life saves you money.
House2Start wiring connections.

Simple 3-Wire Installation

Connect three wires:

  • house battery input to House2Start yellow wire
  • starter battery to House2Start yellow wire
  • House2Start black wire to ground.
Install Guide Install Videos

House2Start Best-in-Class Features

  • Smart 4 stage 12V lead acid battery charger
  • Powered by RV house battery
  • Fully automatic, designed for safe permanent installation
  • Over-voltage and low-voltage protection
  • Temperature compensated charge voltages
  • Built-in over-current and thermal limiter protection
  • Integrated short-circuit protection fuses
  • Compatible with mixed battery chemistries (LiFePo4 input and Lead Acid output)
  • Multi-color status LED
  • Easy installation, only 3 wires
  • Compact size, install anywhere
  • Pre-attached 16AWG Ancor marine-grade wires to simplify installation
  • Fully encapsulated electronics, rugged and waterproof
  • Designed, built, and supported in the USA

For More Detailed Information, Check Out the:

Why House2Start Is The Best Choice For Your RV
House2Start TRIK-L-START, AMP-L-START Xantrex Echo NOCO Genius
Charger Algorithm Multi-stage smart charger voltage follower voltage follower Multi-stage smart charger
DC Powered yes yes yes no
Mix battery chemistry compatibility yes no no N/A
Temperature compensation yes no no yes
permanently installed yes yes yes no
Size (inches) 3.1 x 2.1 x 1 3.9 x 2.1 x 1.5 5.5 x 4.5 x 1.25 5.1 x 3.8 x 1.9

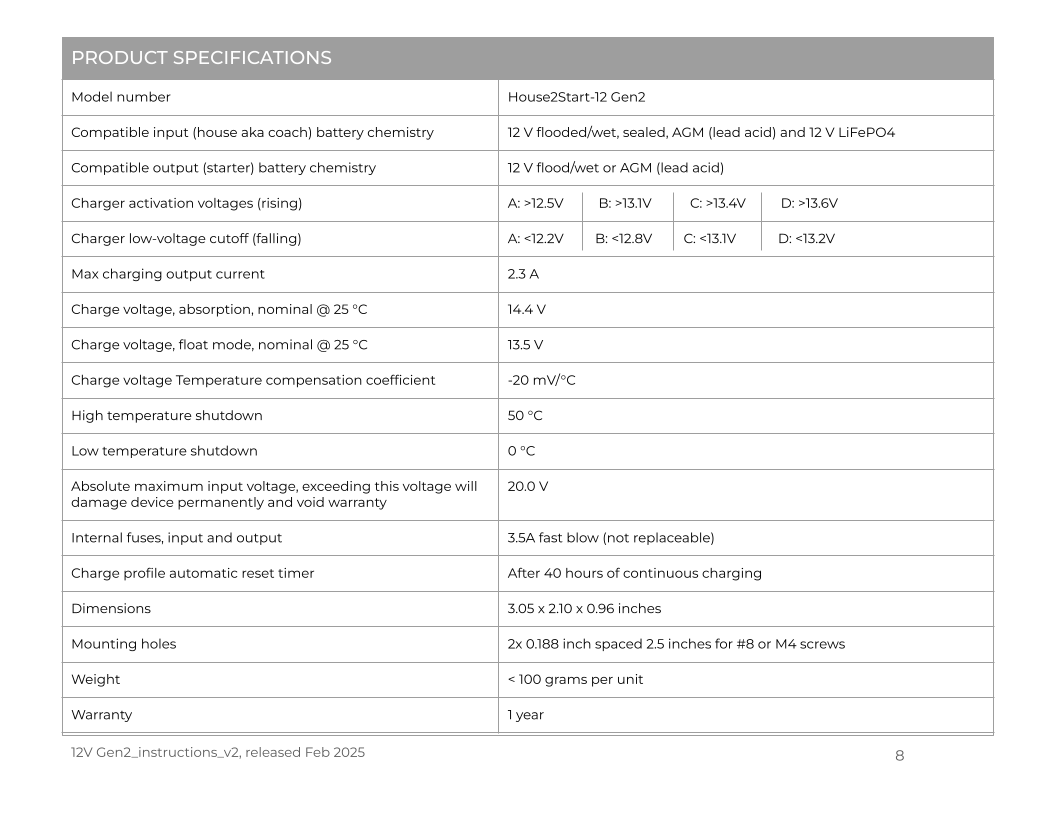

Product specifications table for the House2Start RV starter battery charger.
